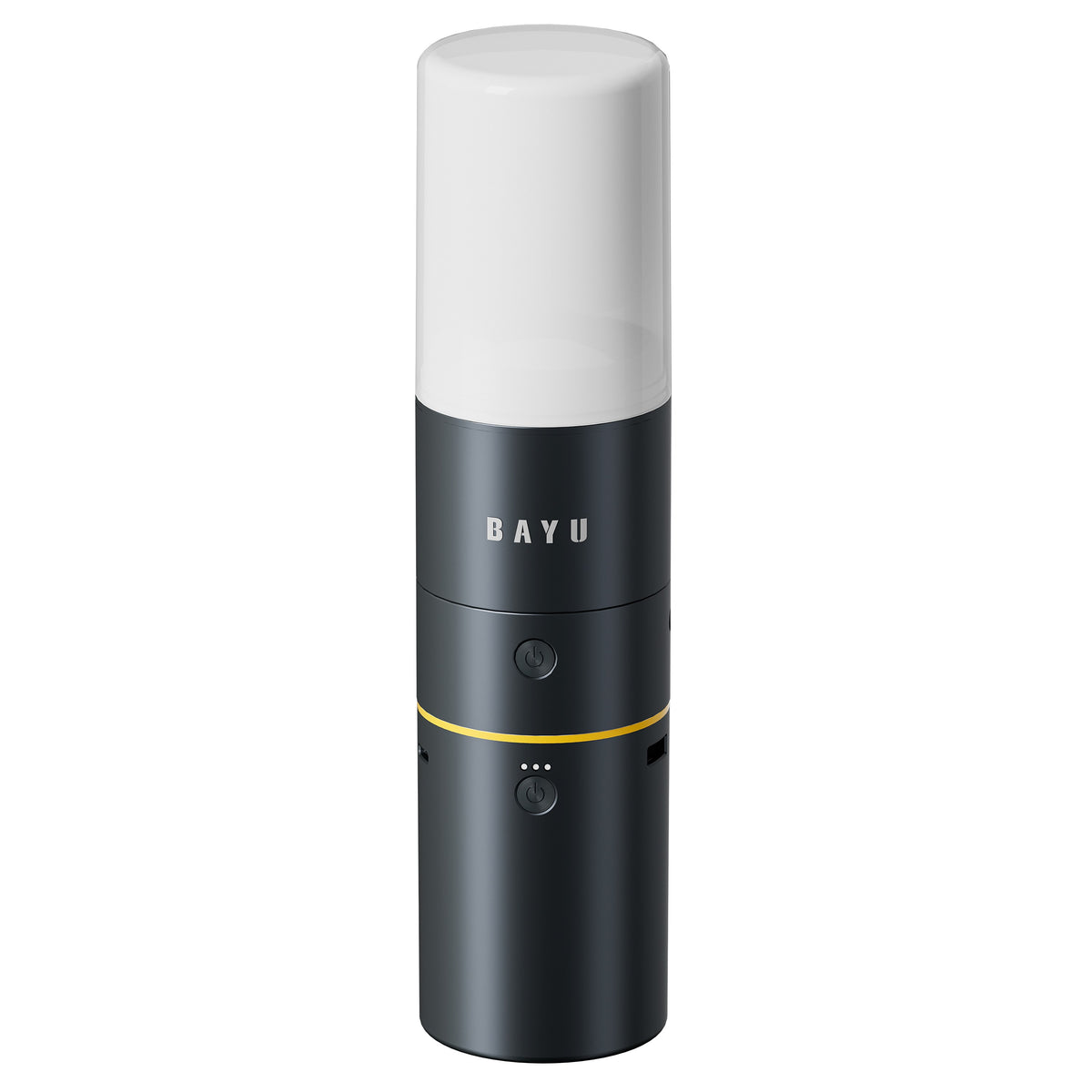

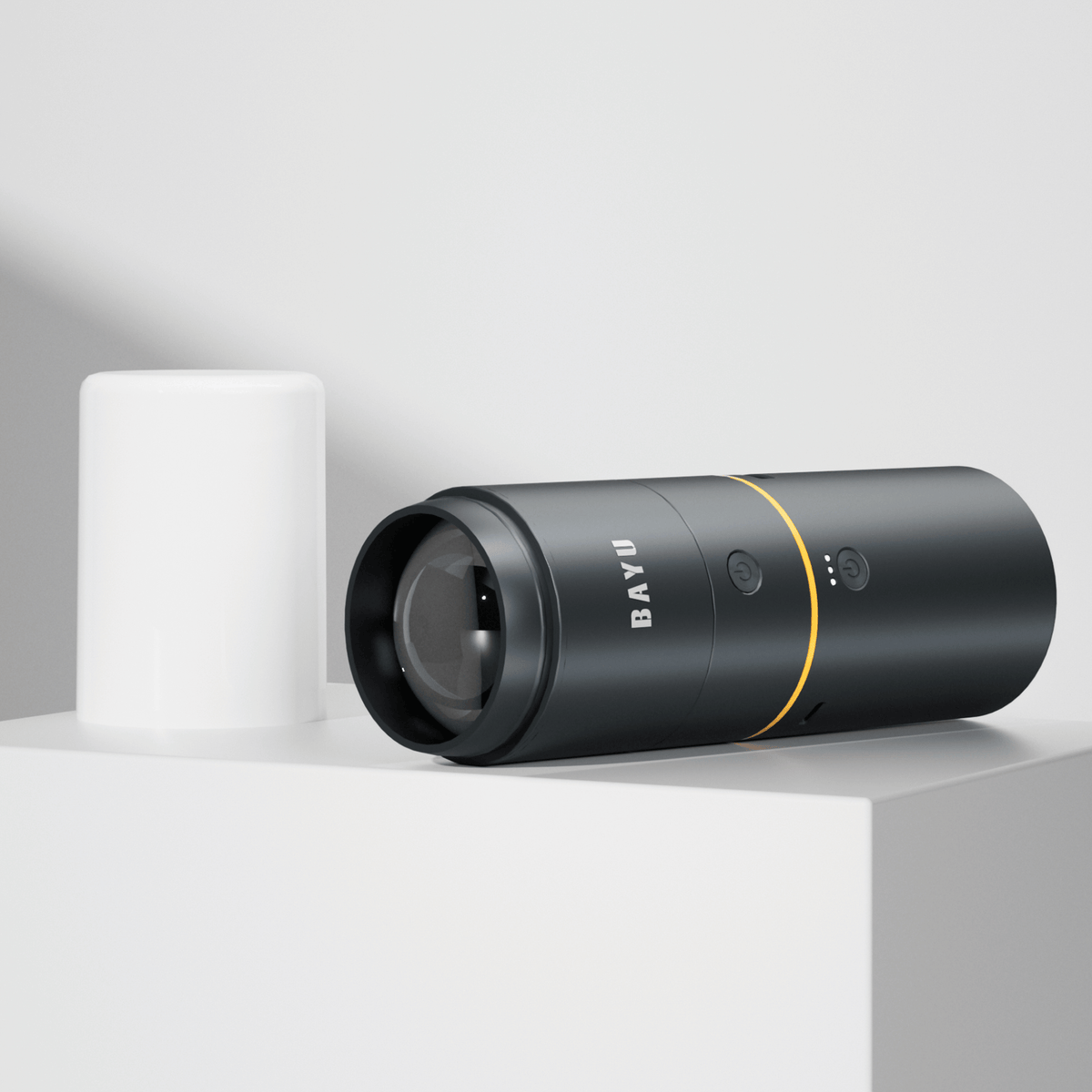

BAYU LED Torch with Telescopic Focus
Model BYS01
A compact LED torch with stepless telescopic focus and five lighting modes.
Compatibility
One battery platform
Product information
About this product
This portable LED torch has five modes: high, medium and low brightness, flash and SOS.
Slide the front of the body forward or back to adjust the beam from a wide close spread to a narrow, longer-reaching beam. With the lampshade fitted, it becomes a diffuse light for camping.
It runs from a BAYU battery (power bank) on its spring contacts, has a 12V DC input for an optional car power cord, and a British 1/4 screw-nut interface for tripods and other brackets.

Features
- Five modes: high, medium, low, flash and SOS
- Stepless telescopic focus
- Lampshade for diffuse lantern-style light
- British 1/4 screw-nut interface for tripods and brackets
Specifications
Key specifications
- Model
- BYS01
- Lamp Beads
- Quad Core
- Focusing
- Infinite Zoom
- Size
- 100mm*65mm
- Voltage
- 6V
- Shell Material
- Aluminium alloy
- Lens Material
- Optical Glass
- Overheat Protection
- Automatic Power Reduction When Overheating
- Lampshade
- Yes
- DC Interface
- DC-5525-12V
- Power
- 12W
- Weight
- 390g
- Bracket interface
- British 1/4 screw nut interface
- Switch position
- five levels (high brightness, medium brightness, low brightness, flash, SOS)
How to use
- Remove the decorative ring from the BAYU battery (power bank), align its unlock mark with the triangle on the torch, connect, then turn the battery right until the lock mark lines up.
- Press the battery's power switch, then press the torch switch to turn on high brightness.
- Press the torch switch again within 2.5 seconds to move to the next mode (high, medium, low, flash, SOS). After more than 2.5 seconds, a press turns it off.
- Hold the front of the body and slide it forward or back to adjust the beam size and distance.
- For long use, choose medium or low brightness to extend battery life.

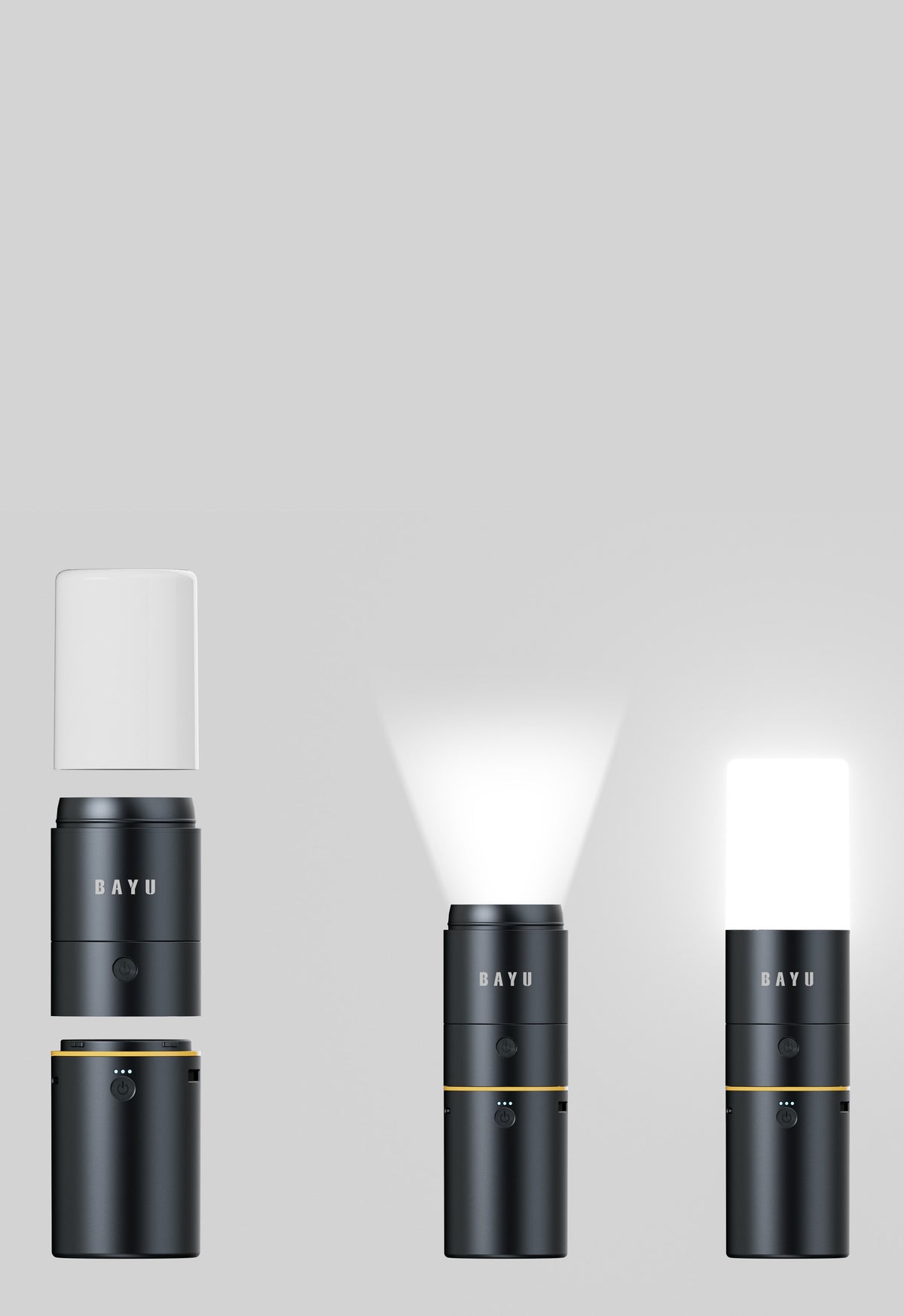

- Press the lampshade onto the top to change from spotlight to a diffuse light of about 360 degrees at close range.
- Optional: mount on a tripod or other bracket using the British 1/4 screw-nut interface, or power it from an optional car power cord through the 12V DC interface.
Safety and care
- The LED gets hot in use and heats the body. Hold the battery section to avoid burns.
- If full brightness is not needed, use medium or low brightness to reduce heat.
- Angle the light towards the ground and do not shine it into anyone's eyes.
- Keep flammable and explosive items away from the torch.
- Do not expose the torch to rain or immerse it in water.
- Do not let children use the product.
Questions
What modes does it have?
Five: high, medium and low brightness, flash and SOS. Press within 2.5 seconds to step through them.
How do I focus the beam?
Slide the front of the body forward or back. A larger aperture lights a closer area; a smaller one reaches further.
Can it be used as a lantern?
Yes. Press the lampshade onto the top for a diffuse, roughly 360-degree light at close range.
Can I mount it?
Yes. The British 1/4 screw-nut interface fits tripod, bicycle handlebar and waist brackets. Brackets are not included.
Can I power it from my car?
Yes, through the 12V DC interface with the optional car power cord.
BAYU LED Torch with Telescopic FocusBYS01
Get the highlights
BAYU LED Torch
-
Connects to BAYU power
Twists onto a compatible BAYU battery, sold separately.
-

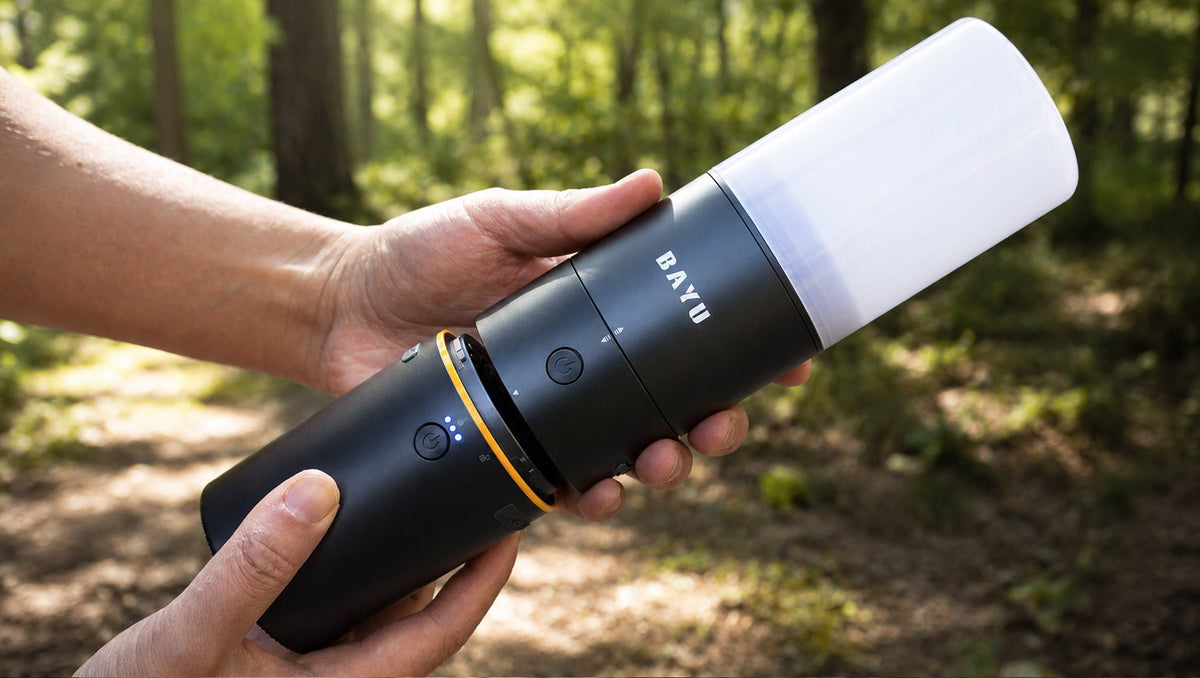

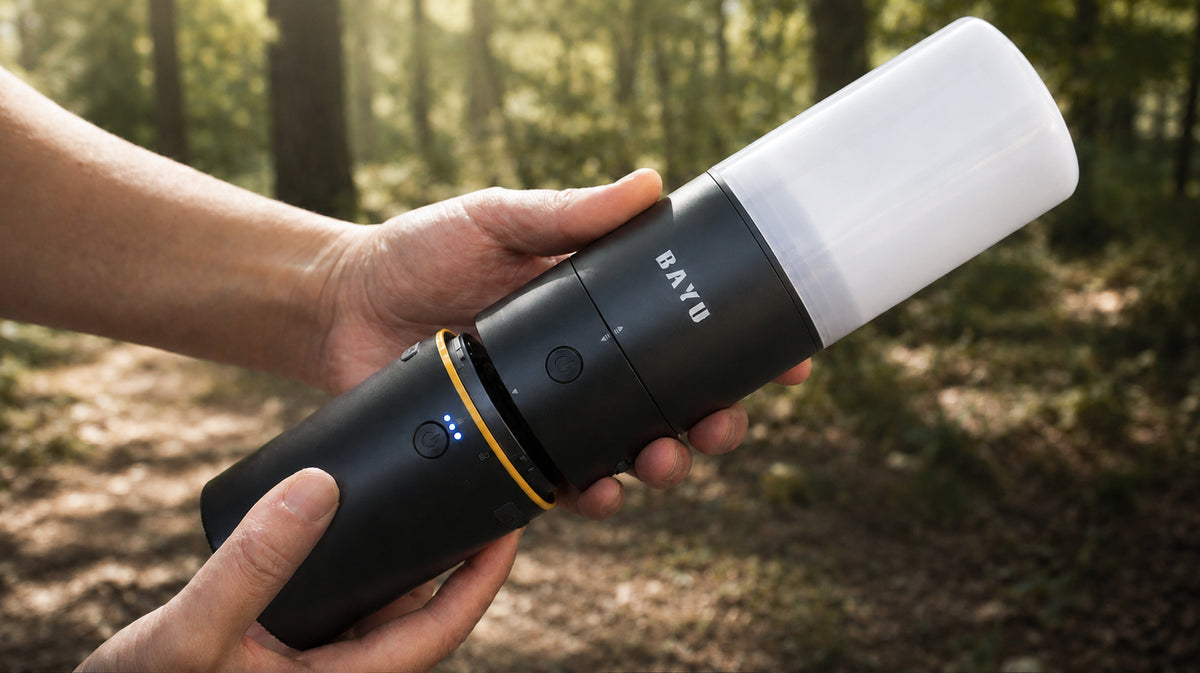

Lantern mode
With the lampshade fitted, it gives a soft, all-round light.
-

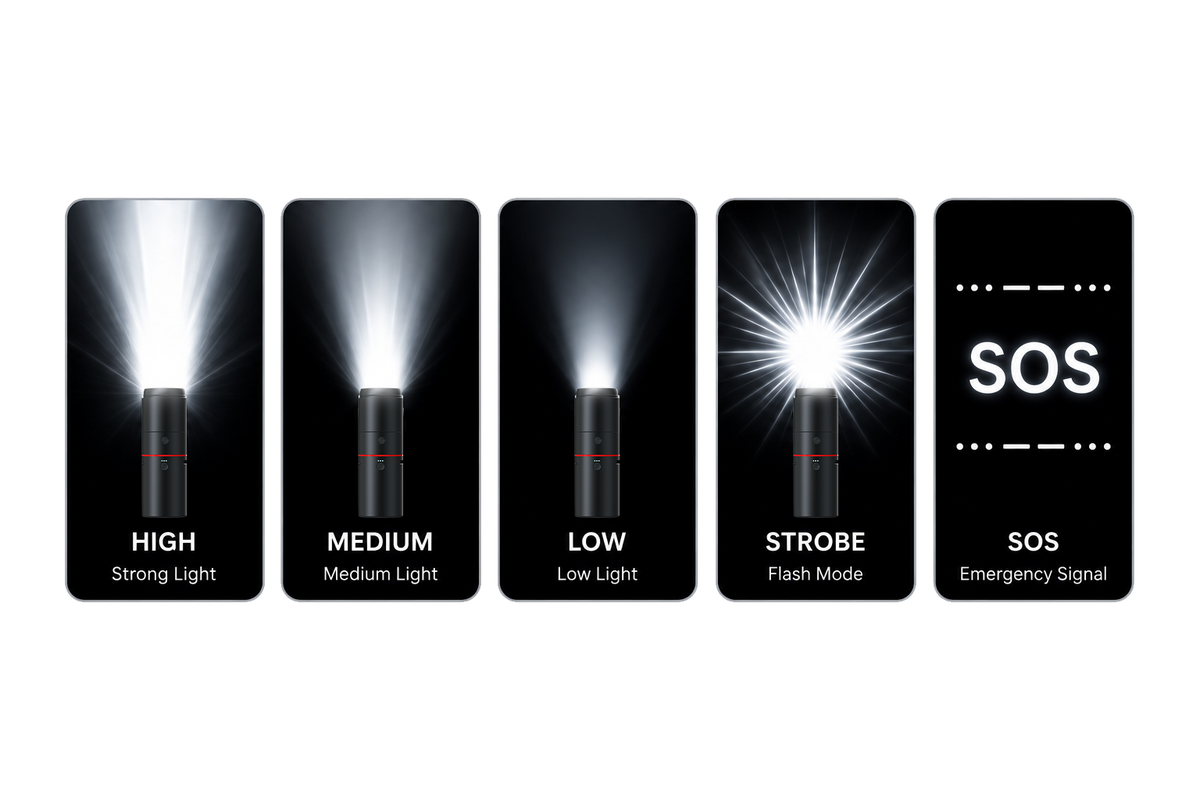

Five light modes
Step through high, medium, low, flash and SOS.
-

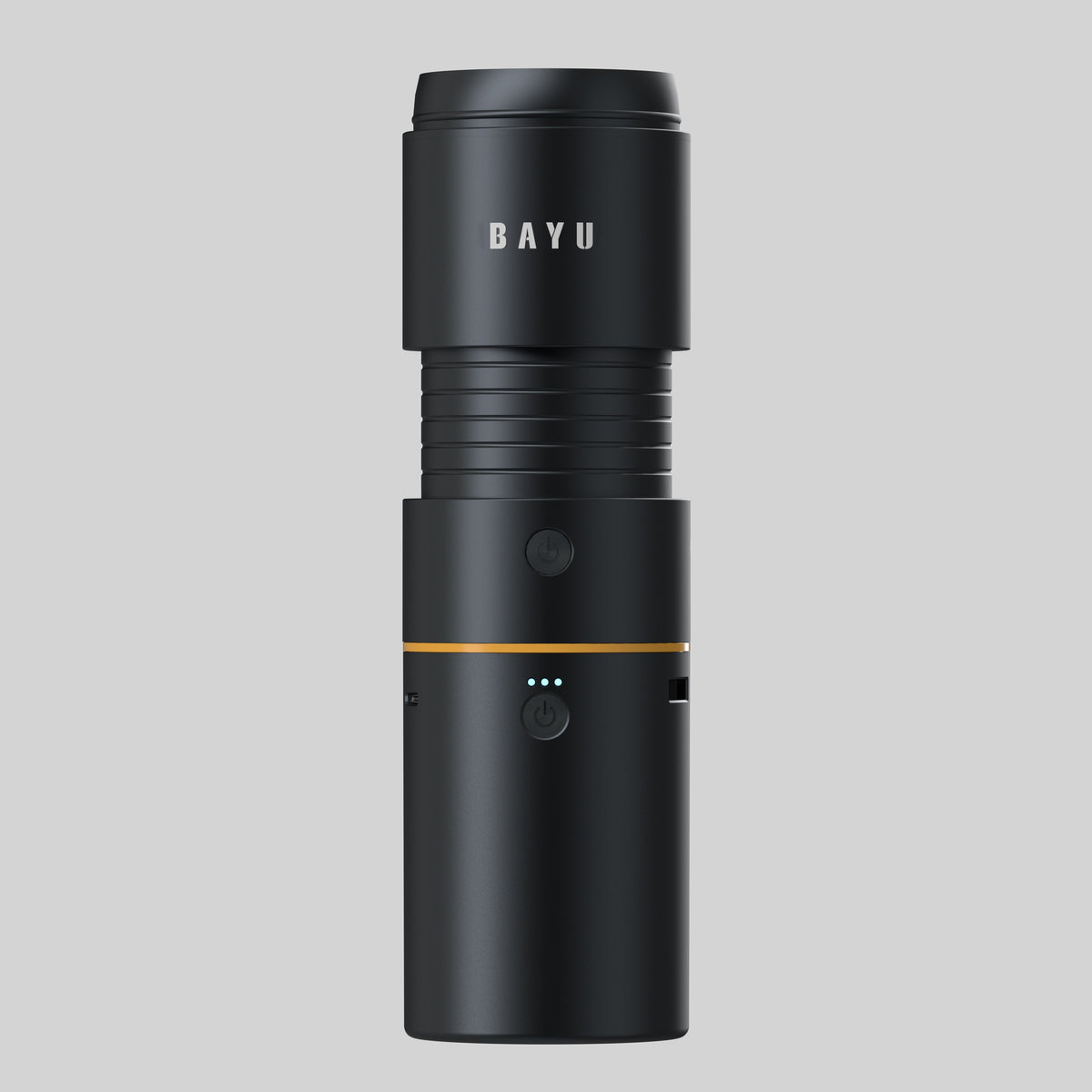

Focused beam
Slide the head to adjust the beam from wide to narrow.
-
After dark
Angle the light towards the ground, never into anyone's eyes.
Warranty
If it fails within the warranty period under the policy terms, it gets replaced — not repaired.
