BAYU 19,200mAh Power Bank – 15W Wireless Charging
Model BY-NLB192B
BAYU 19,200mAh portable power bank with 15W wireless charging, USB output and 12V DC output for camping and travel.
Compatibility
One battery platform
About this product
Take more portable power wherever you go with the BAYU 19,200mAh Power Bank. Designed for high-capacity portable charging, it combines USB output, up to 15W wireless charging and a high-output 12V DC connection in one compact unit. USB output supports 5V/3A and 9V/2A, while USB Type-C input supports up to 18W for convenient recharging. The durable ABS housing and compact design make it a versatile power solution for camping, 4WD touring, travel and everyday use.

Features
- 19,200 mAh — the largest capacity in the range
- 22.5 W USB with QC3.0, FCP and AFC
- 15 W wireless charging pad
- 12 V DC output rated to 10 A
Specifications
Key specifications
- Model
- BY-NLB192B
- Shell Material: ABS-777D
- Cell/Brand: 18650
- Cell Capacity: 3300mAh
- Battery Pack: Three in series, two in parallel, 6 cells
- Rated Capacity: 6400mAh (12v)
- Total Cell Capacity: 19200mAh (3.7v-4.2v)
- Protection Board: With overcharge, over-discharge, overcurrent and short-circuit protection
- Charge and Discharge Voltage: Charge protection voltage 12.6V, discharge cut-off voltage 7.5V
- Continuous Current: Maximum discharge of 10A
- USB Output: Can provide a maximum output of 22.5W (5V@3.0A, 9V@2A, 12V@1.5A, etc.) and supports DCP/QC2.0/QC3.0/FCP/AFC fast charging protocols
- DC Socket Output: Voltage 12V, maximum current up to 10A
- Top Copper Contact Output: Voltage 12V, maximum current up to 10A
- Wireless Charging Output: Wireless charging is compatible with WPC v1.2.4 standard, supports individual 5W, 9V supports 5W/7.5W/10W; 12V supports 5W/7.5W/10W/15W applications, supports FOD foreign object detection function.
- Type-C Input: Maximum charging power is 15W, specifically subject to the output power of the charger. Internally adaptive for charging the power bank
- Charge While Discharge: Supported, it is recommended to not exceed 50W as the maximum output during charging.
- Battery Level Display: 3 LED lights, each with 33% battery capacity
- Charging Prompt: LED indicator light blinks, when fully charged, all 3 LED lights are on.
- Power on/power off: Short press the power switch
- Automatic shutdown: Automatic shutdown after 30 minutes without load.
- Sleep power consumption: Current less than 400uA
- Charging Advice: It is recommended to charge once every three months if not in use for a long time.
Product dimensions
- Dimensions
- 95 × 65.5 mm
- Weight
- 387 g
No further information is published for this section yet.
How to use
- Charge it first. Charge over USB-C before first use. The indicator blinks while charging and all three lights hold steady when it's full. Each light is roughly a third of the charge.
- Switch it on. Short-press the power button. It switches itself off after 30 minutes with nothing drawing from it.
- Pick an output. USB for phones and small devices, the 12 V DC socket for vehicle and camp gear, or dock a BAYU attachment head straight onto the top contacts.
- Charge and discharge at once. It will power something while it's being charged. Keep the combined output under 50 W when you do.

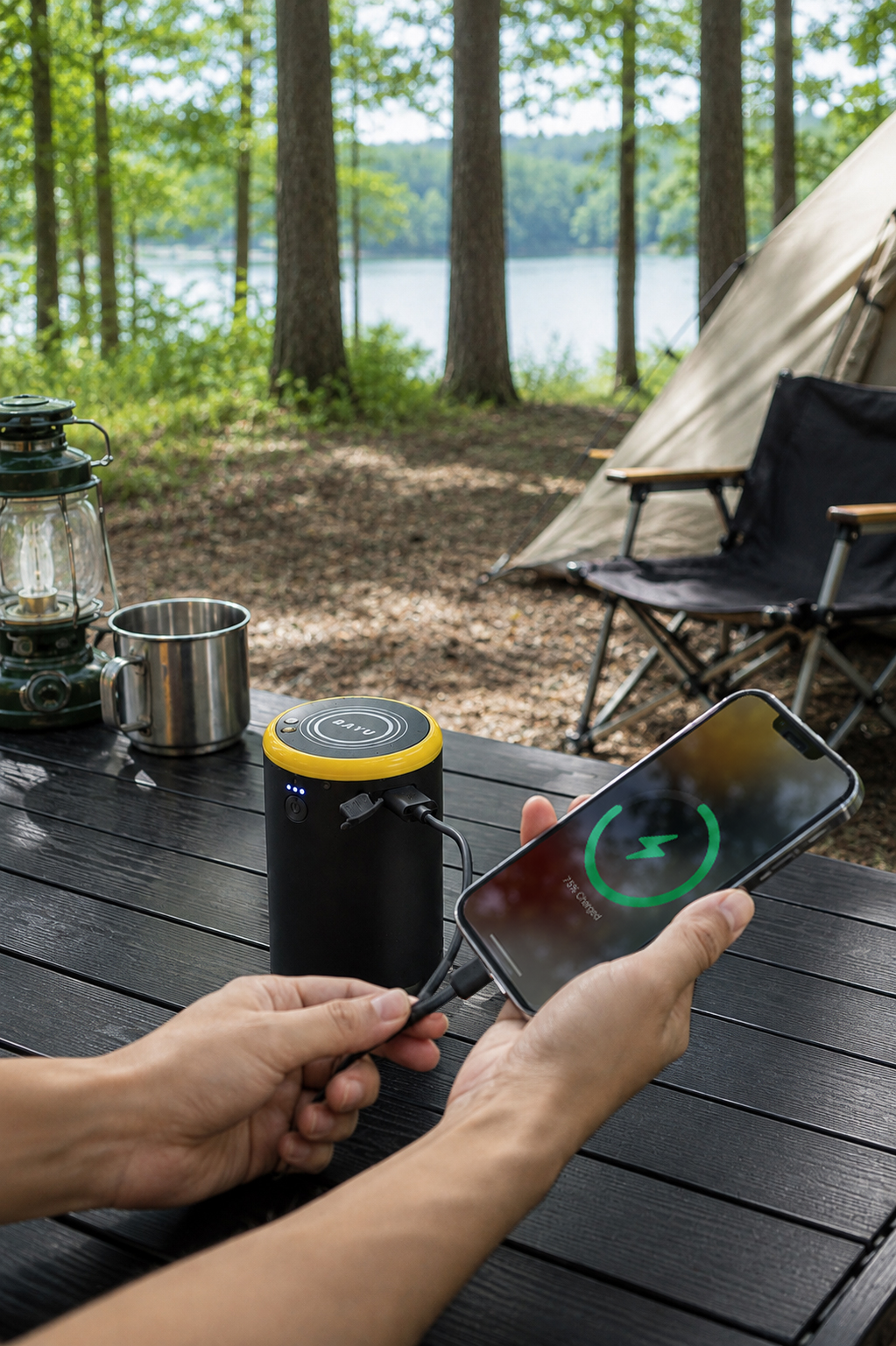

- Wireless charging. Lay a Qi phone flat and centred on the charging face. Take off thick cases and anything metal — the foreign-object detection will refuse to charge through a coin or a card.
- Fast charge a phone. The USB output delivers up to 22.5 W and supports QC2.0, QC3.0, FCP and AFC.
- Long storage. Charge it once every three months if it's sitting unused.
User manual
Download or view the official manual for this product.
View user manual · BY-NLB192B (opens in a new tab) Manufacturer's English manual for this exact model. Model numbers are the manufacturer's own designations.
Safety and care
- Protection built in. Overcharge, over-discharge, over-current and short-circuit protection are on the board. Charge protection voltage 12.6V, discharge cut-off voltage 7.5V.
- Damage. Stop using it if the case is cracked, swollen or has been submerged. Don't open it.
- Cleaning. Wipe with a dry cloth. Keep the top contacts clean and dry.
- Warranty. 2-Year Replacement Warranty. If it fails within the warranty period under the policy terms, it gets replaced — not repaired.
Questions
Which BAYU attachments work with this battery?
Every BAYU battery-platform attachment — this battery powers all of them:
- Cordless Handheld Vacuum Cleaner
- Telescopic LED Camping Light
- Cordless Pressure Washer
- Portable Bluetooth Speaker
- LED Camping Light
- 4-in-1 Wireless Charging Station
- 1600LM LED Torch
- Portable Camping Fan
- Portable Tyre Inflator
- Cordless Blower & Vacuum Combo
Choose by capacity, and whether you need the built-in jump starter.
Is a vehicle jump starter built in?
No. This battery does not include a built-in vehicle jump starter.
Where is the user manual?
The manufacturer's English manual for this exact model is available here: User manual (PDF) (opens in a new tab)
What this battery powers
Explore BAYU products and the supplied runtime figures available for this battery.
Runtime figures are shown where BAYU supplied data for this battery and product combination.
Runtime shown for
- BAYU 1600LM LED Torch – Telescopic Focus
- BAYU Telescopic LED Camping Light – 1600LM
- BAYU Portable Tyre Inflator – 120W Air Compressor
Runtime varies by product mode, output level, operating conditions and usage. Figures shown are based on BAYU supplied runtime specifications.
