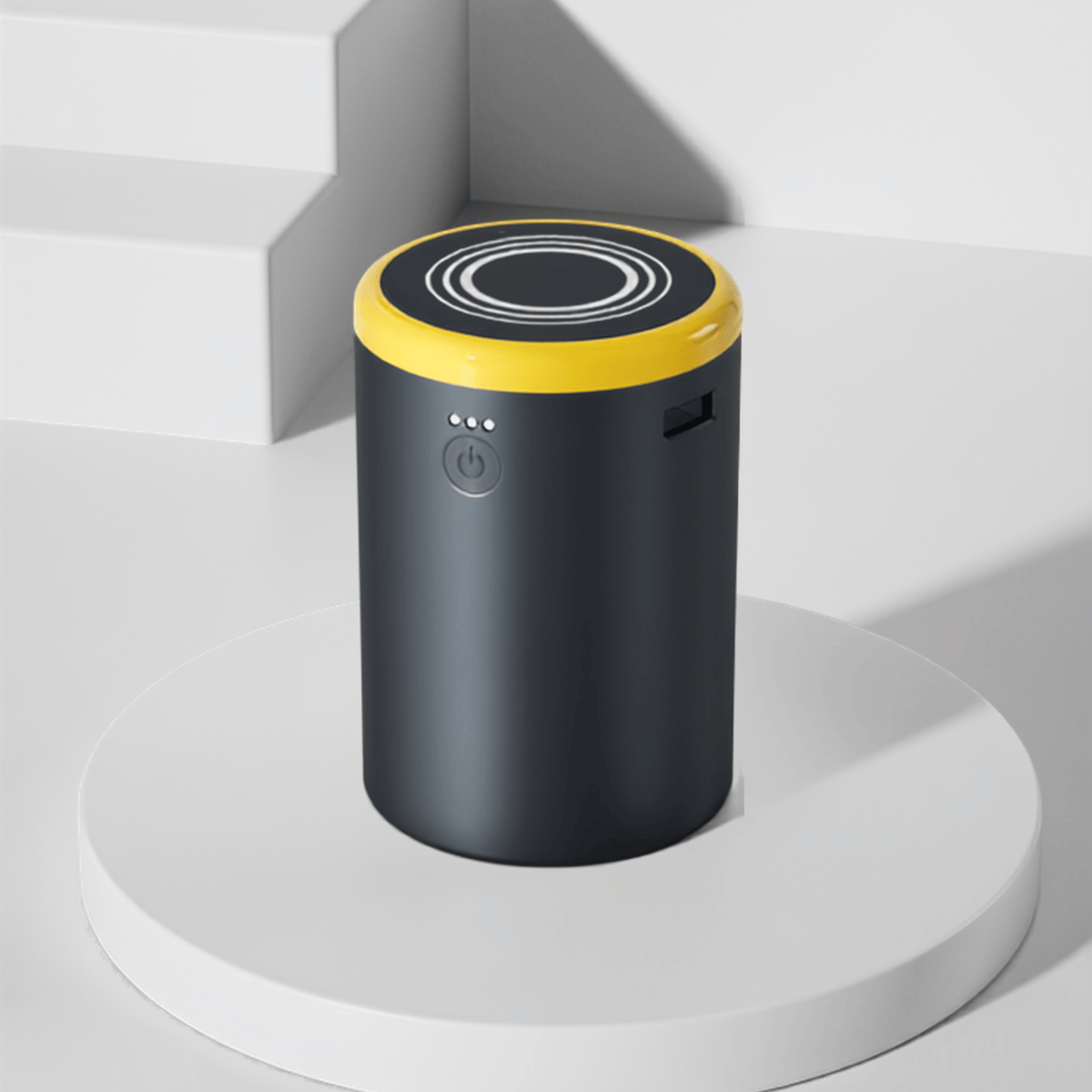

• BAYU 15,000mAh Jump Starter Power Bank, showing the top contacts and control face

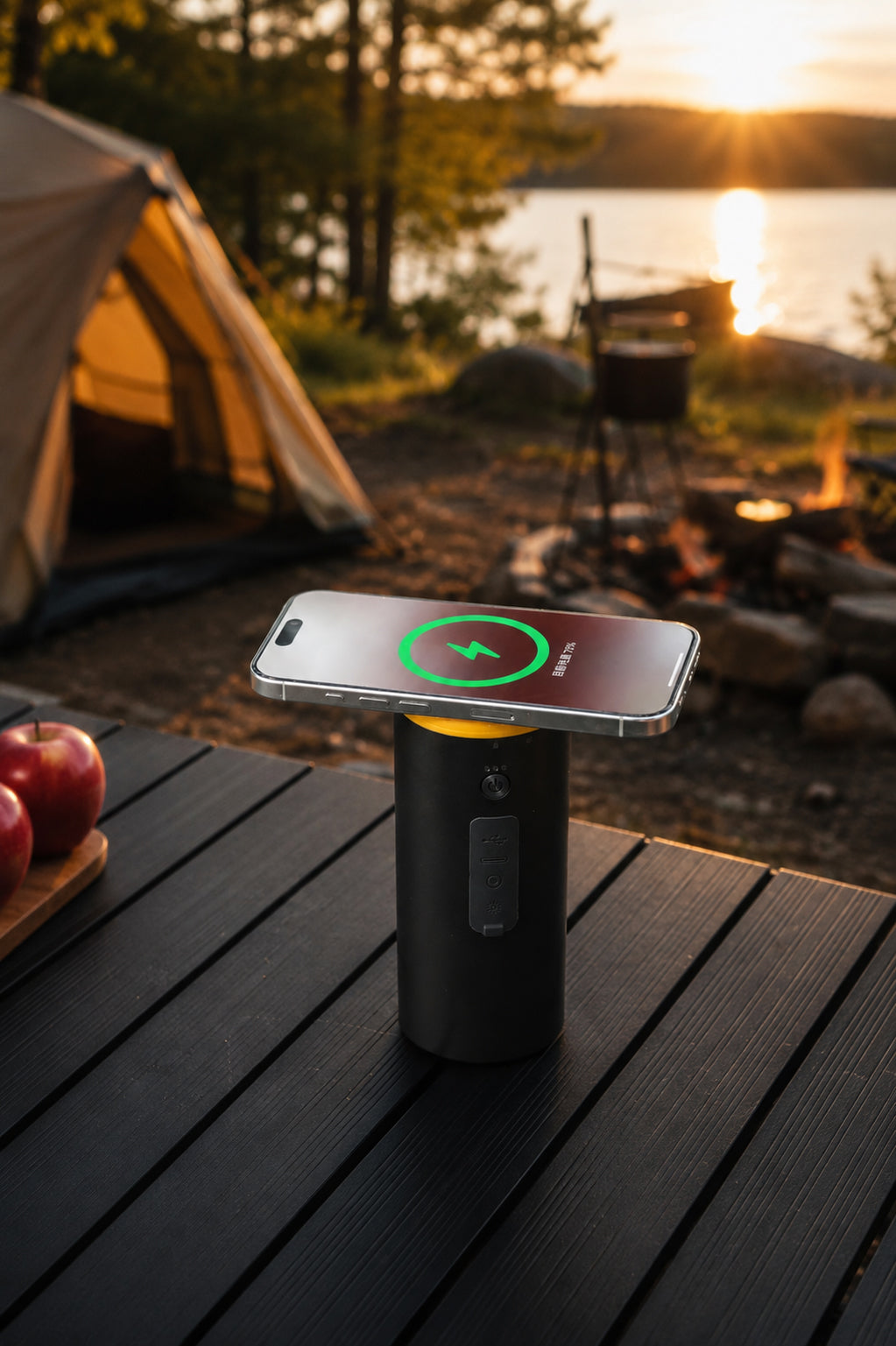

  • BAYU 15,000mAh Jump Starter Power Bank in use

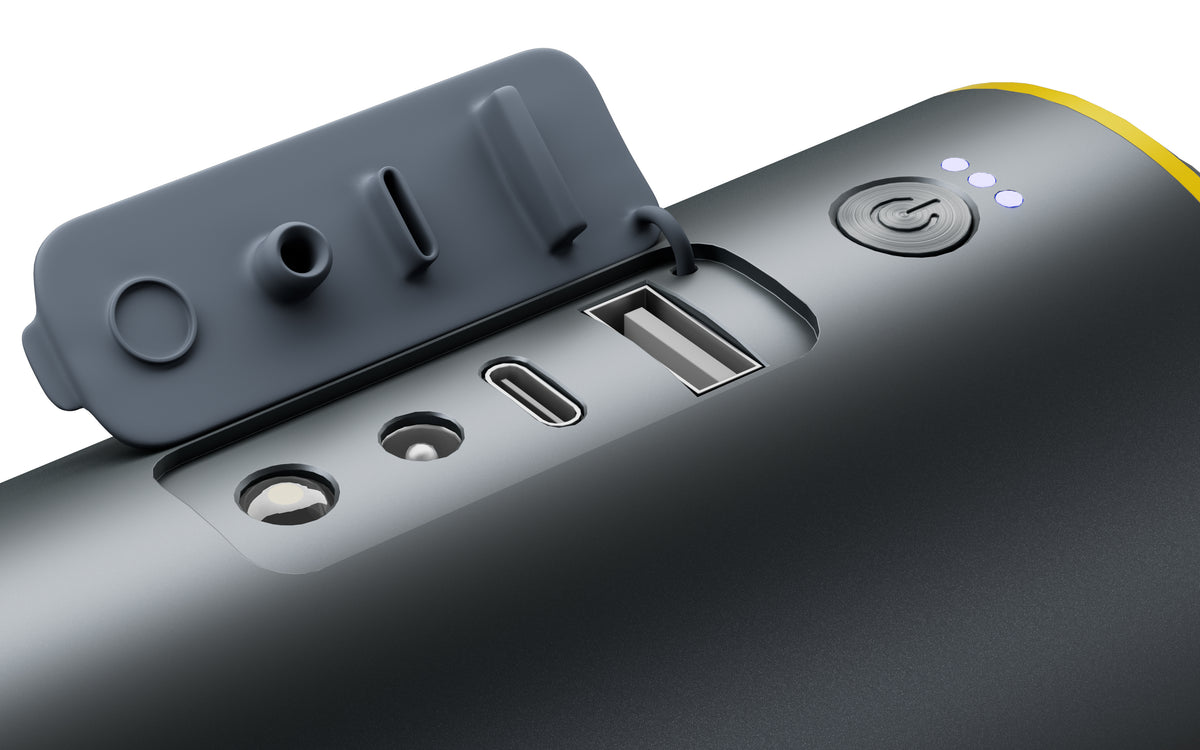

  • BAYU 15,000mAh Jump Starter Power Bank, detail of the ports and indicators
  • BAYU 15,000mAh Jump Starter Power Bank with the 152C smart jump starter clamps
Battery platform

BAYU 15,000mAh Jump Starter Power Bank – 15W Wireless Charging

Model NLB-C

$85.00In stock

BAYU 15,000mAh jump starter power bank for petrol engines up to 4.0L and diesel up to 2.5L, with 15W wireless charging.

Benefits

  • 300 A jump start, 1,500 A peak
  • Starts petrol to 4.0 L and diesel to 2.5 L
  • 22.5 W USB and 15 W wireless charging
  • Smart clamps included, with reverse-polarity protection
AboutSpecificationsWhat's includedHow to useSafety & careRelated productsFAQ

About this product

Combine portable charging and emergency vehicle starting in one compact device with the BAYU 15,000mAh Jump Starter Power Bank. Designed to start petrol engines up to 4.0L and diesel engines up to 2.5L, it provides a practical roadside backup while also serving as a versatile power bank. It features up to 15W wireless charging, USB output supporting 5V/3A and 9V/2A, and a 12V DC output rated up to 10A for compatible equipment. The required jump starter clamp is included.

Specifications

ModelNLB-C
Specifications
  • Shell Material: ABS
  • Cell: Polymer Cell
  • Cell Capacity: 5000mAh
  • Battery Pack: Three in series and one parallel, 3 pieces
  • Rated Capacity: 5000mAh (12v)
  • Total Cell Capacity: 15000mAh (3.7v-4.2v)
  • Car Jump Start Current: 300A
  • Car Jump Peak Current: 1500A
  • Protection Board: Features overcharge, over-discharge, overcurrent, and short-circuit protection.
  • Charge and Discharge Voltage: Charging protection voltage 12.6V, discharge cut-off voltage 8.5V.
  • USB Output: Can provide a maximum output of 22.5W (5V@3.0A, 9V@2A, 12V@1.5A, etc.), supports DCP/QC2.0/QC3.0/FCP/AFC fast charging protocols.
  • DC Socket Output: Voltage 12V, maximum current of 10A.
  • Top Copper Contact Output: Voltage 12V, maximum current of 10A.
  • Wireless Charging Output: Wireless charging is compatible with WPC v1.2.4 standard, supports standalone 5W, 9V supports 5W/7.5W/10W; 12V supports 5W/7.5W/10W/15W applications, supports FOD foreign object detection function.
  • Type-C Input: Maximum charging power is 15W, subject to the actual output power of the charger. Internally adapted to charge the Power Bank.
  • Charge While Discharging: Supported, it is recommended that the maximum output during charging does not exceed 50W.
  • Battery Level Display: 3 LED lights, each indicating 33% battery level.
  • Charging Prompt: LED indicator light blinks, when fully charged, all 3 LEDs are on.
  • Power On/Off: Short press the power switch
  • Auto Shutdown: Auto shutdown after 30 minutes of no load
  • Sleep Power Consumption: Current less than 200uA
  • Charging Advice: It is recommended to charge once every three months if not used for a long time.
Dimensions149 × 65.5 mm
Weight523 g

Technical notes

300 A is the jump-start current and 1,500 A the peak — both are supplier figures. The engine-size guidance assumes a vehicle battery that is discharged rather than failed, and a pack with charge in it. The 22.5 W USB output is reached only with a device and cable that negotiate the supported fast-charge protocols, and wireless output depends on what is feeding the pack.

What's included

  • NLB-C 15,000mAh jump starter power bank
  • 152C jump starter clamp

How to use

  1. Charge it first. Charge over USB-C before first use. The indicator blinks while charging and all three lights hold steady when it's full. Each light is roughly a third of the charge.
  2. Switch it on. Short-press the power button. It switches itself off after 30 minutes with nothing drawing from it.
  3. Pick an output. USB for phones and small devices, the 12 V DC socket for vehicle and camp gear, or dock a BAYU attachment head straight onto the top contacts.
  4. Charge and discharge at once. It will power something while it's being charged. Keep the combined output under 50 W when you do.
  5. Wireless charging. Lay a Qi phone flat and centred on the charging face. Take off thick cases and anything metal — the foreign-object detection will refuse to charge through a coin or a card.
  6. Between attempts. Give the pack a rest between cranking attempts rather than cranking repeatedly.
  7. Long storage. Charge it once every three months — and check it before a trip, not during one.

Watch how to use it

Video coming soon.

User manual

Download or view the official manual for this product.

View user manual · NLB-C (opens in a new tab) Manufacturer's English manual for this exact model. Model numbers are the manufacturer's own designations.

Safety and care

  • Protection built in. Overcharge, over-discharge, over-current and short-circuit protection are on the board. Charging protection voltage 12.6V, discharge cut-off voltage 8.5V.
  • Jump starting. Clamps the right way round — red to positive, black to negative — and kept clear of each other. Never jump a frozen, leaking or visibly damaged vehicle battery.
  • Damage. Stop using it if the case is cracked, swollen or has been submerged. Don't open it.
  • Cleaning. Wipe with a dry cloth. Keep the top contacts clean and dry.
  • Warranty. Two years, replacement. If it fails inside that window it's replaced, not repaired.

What Can This Battery Power?

Explore BAYU products and the supplied runtime figures available for this battery.

Runtime figures are shown where BAYU supplied data for this battery and product combination.

    Runtime varies by product mode, output level, operating conditions and usage. Figures shown are based on BAYU supplied runtime specifications.

    Compatible with all BAYU battery-platform attachments.

    Every BAYU battery-platform attachment runs from this battery:

    • Every BAYU battery-platform attachment is compatible with all BAYU batteries.
    • Choose by capacity, and whether you need the built-in jump starter.

    Compare BAYU battery options

    Every BAYU battery powers every BAYU battery-platform attachment. Compare capacity and jump-starter features before choosing.

    Browse attachments

    Questions

    Which BAYU attachments work with this battery?

    Every BAYU battery-platform attachment — this battery powers all of them:

    Choose by capacity, and whether you need the built-in jump starter.

    Is a vehicle jump starter built in?

    Yes. A built-in vehicle jump starter is part of this product.

    Where is the user manual?

    The manufacturer's English manual for this exact model is available here: User manual (PDF) (opens in a new tab)
