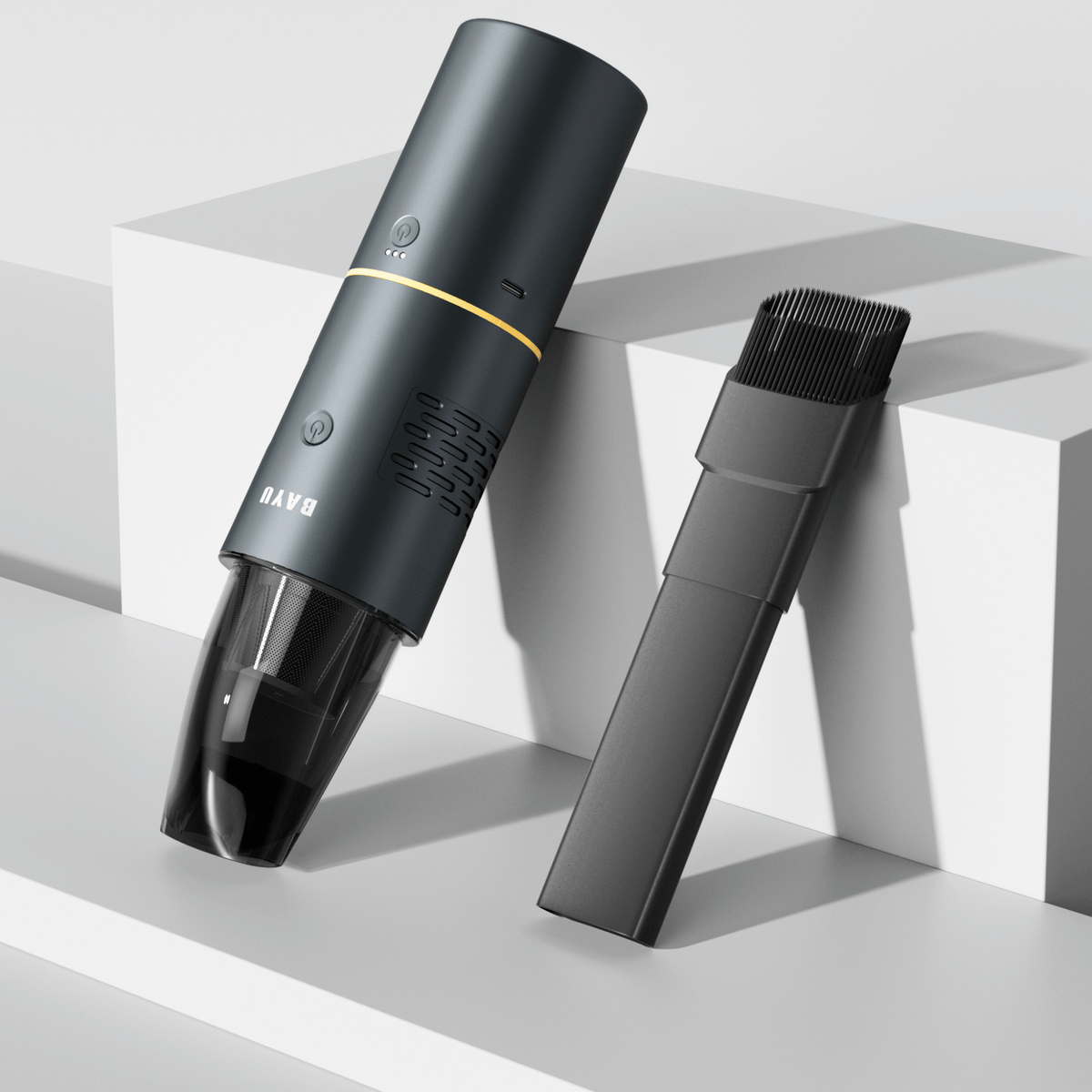

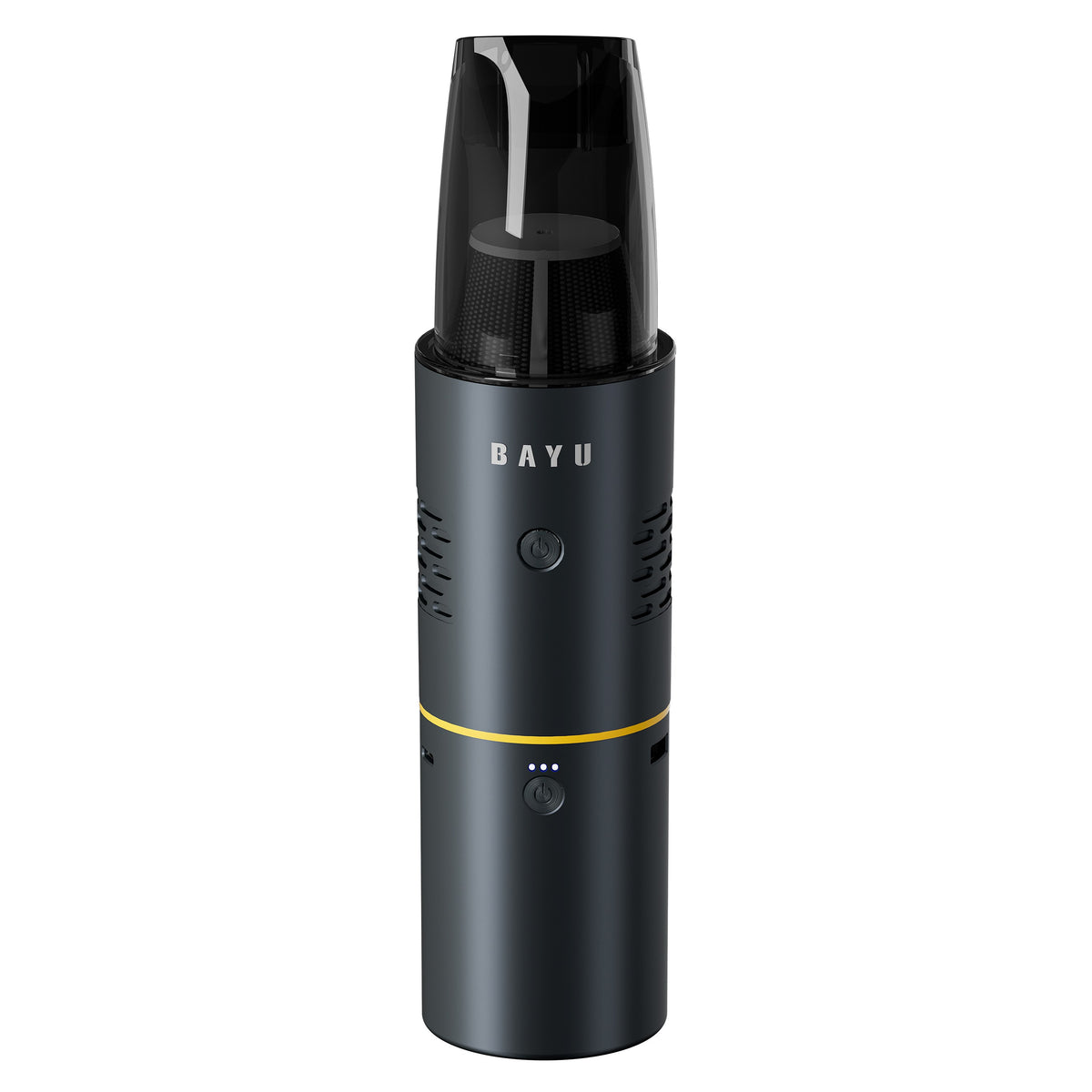

BAYU Cordless Vacuum Cleaner – 19,000Pa
Model BY-XCQ01
BAYU cordless car vacuum cleaner with 19,000Pa suction, 120W output and 105,000 RPM motor for convenient vehicle and everyday cleaning.
Benefits
- Two gears — 11 kPa for dust, 19.5 kPa for ground-in sand
- 105,000 rpm brushless motor on a 42 mm aluminium turbine
- Washable stainless and HEPA filter
- 260 g in the hand, powered by any BAYU battery
About this product
Compact, powerful and designed for convenient everyday cleaning, the BAYU Cordless Car Vacuum Cleaner delivers up to 19,000Pa of suction from a high-speed 105,000 RPM motor. Its lightweight design makes it easy to manoeuvre around vehicles, boats, campsites, the home or office, including tight and hard-to-reach areas where dust, dirt and debris accumulate. With 120W of power and a durable aluminium-alloy turbine, it combines strong cleaning performance with a compact, highly portable design. A washable reusable filter makes ongoing cleaning and maintenance simple.
Specifications
| Model | BY-XCQ01 |
|---|---|
| Specifications |
|
| Dimensions | 280 × 66 mm |
| Weight | 260 g |
Technical notes
Suction is measured at the inlet with no tool fitted. Fitting the crevice tool or brush head, or a loaded filter, reduces it. Figures are supplier measurements on a fully charged battery.
What's included
Information coming soon.
How to use
- Dock a battery. Slide a BAYU battery module onto the base until the contacts seat. This is an attachment module — it needs a BAYU battery (sold separately) or the 5 m 12 V vehicle power cable to run.
- Fit the head. Push on the crevice tool or brush head for the job before you power up.
- Choose a gear. First gear is 11 kPa at 80 W for light dust and upholstery. Second gear is 19.5 kPa at 120 W for footwells, sand and pet hair.
- Rinse the filter. The stainless and HEPA filter is washable. Rinse it under water, let it dry completely, then refit it. Never run the vacuum with a damp filter.
- If it stops. Above 105 °C it shuts down and restarts once it drops below 77 °C. A 20 A current cut-out needs a manual restart — switch it off and back on.
Watch how to use it
Video coming soon.
User manual
Download or view the official manual for this product.
View user manual · BY-XCQ01 (opens in a new tab) Manufacturer's English manual for this exact model. Model numbers are the manufacturer's own designations.
Safety and care
- Overheat Protection. Shutdown above 105 degrees, can restart when below 77 degrees
- Current Protection. 20A cut-off, manual restart required after cut-off
- Filter must be dry. Refitting a damp filter will damage the motor.
- Fingers and hair clear of the intake and anything moving while it runs.
- Power down before changing heads. Switch off and pull the battery first.
- Cleaning. Wipe the housing with a dry or barely damp cloth. No solvents.
- Warranty. Two years, replacement. If it fails inside that window it's replaced, not repaired.
Compatible BAYU batteries
Compatible with all BAYU batteries. This cordless BAYU attachment runs from any BAYU battery, sold separately.
- Battery sold separately.
- Choose by capacity, and whether you need the built-in jump starter.
Every BAYU battery powers this attachment. Compare capacity and jump-starter features before choosing.
-
19,200mAh Power Bank
Model BY-NLB192B
- Capacity
- 19,200mAh
- Jump starter
- Not included
-
15,000mAh Jump Starter Power Bank
Model NLB-C
- Capacity
- 15,000mAh
- Jump starter
- Built in
-
15,000mAh Power Bank
Model 152B
- Capacity
- 15,000mAh
- Jump starter
- Not included
Questions
Does this product include a battery?
No. The Cordless Vacuum Cleaner is supplied without a battery. A compatible BAYU battery is required to operate it and is sold separately.
Which BAYU batteries work with this attachment?
All of them. This is a BAYU battery-platform attachment, and every BAYU battery powers it. The battery is sold separately — choose by capacity, and whether you need the built-in jump starter.
Can I buy it if I already own a BAYU battery?
Yes. Every BAYU battery powers this attachment — buy the attachment on its own.
Where is the user manual?
The manufacturer's English manual for this exact model is available here: User manual (PDF) (opens in a new tab)
