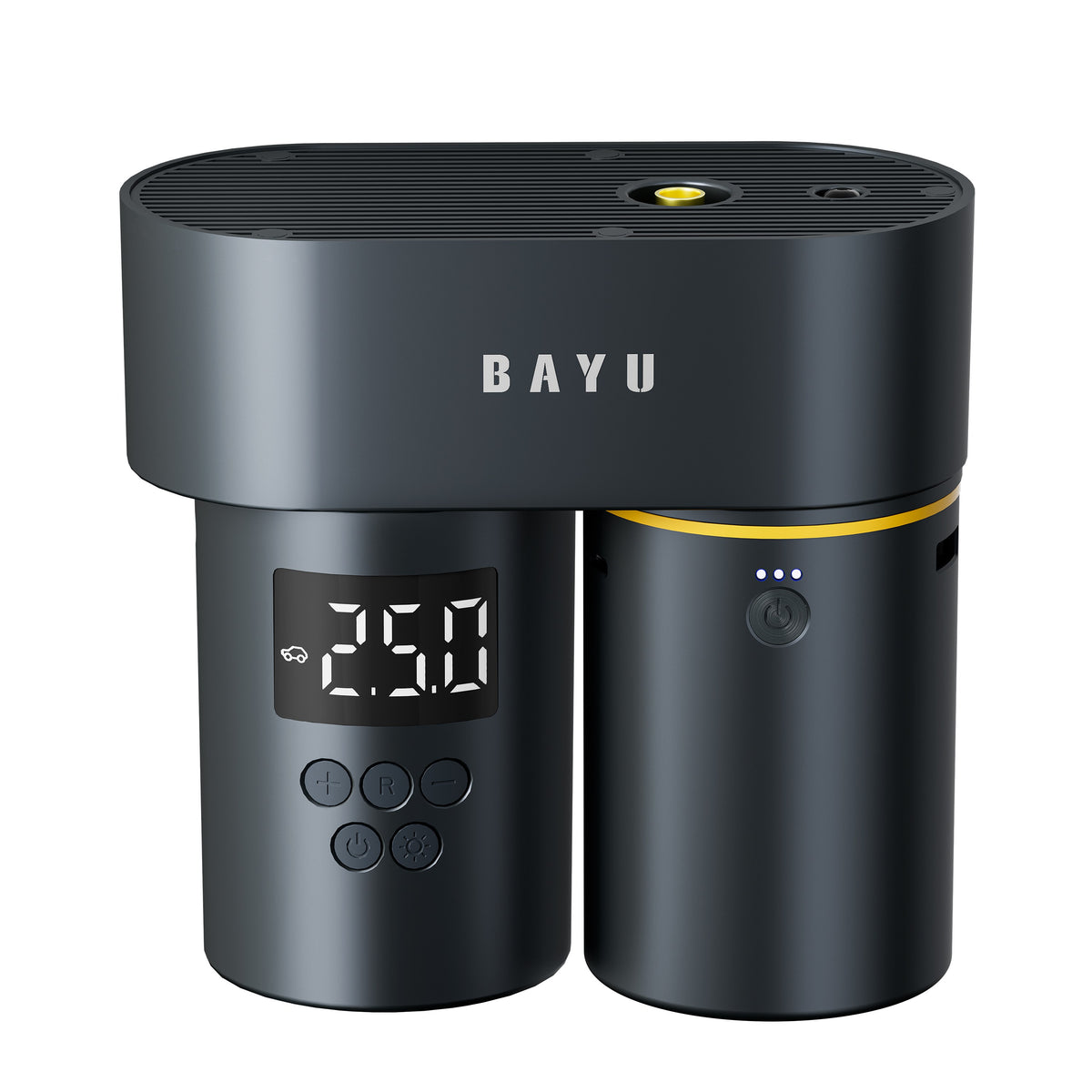

BAYU Portable Tyre Inflator – 120W Air Compressor
Model BY-CQB01
BAYU portable tyre inflator with 120W power, 38L/min airflow, digital pressure presets, automatic stop and built-in LED light.
Benefits
- Stops itself at the pressure you set — no gauge to watch
- 38 L/min from a 120 W zinc-alloy pump
- Presets for car, motorcycle, bicycle and ball
- Built-in LED for roadside work after dark
About this product
Compact, powerful and easy to use, the BAYU Portable Tyre Inflator delivers 120W of power with airflow up to 38L/min for convenient inflation. Digital controls provide dedicated modes for cars, motorcycles, bicycles and balls, with preset pressure and automatic stop once the selected pressure is reached. A built-in LED light adds convenience for roadside use, while the zinc-alloy pump construction supports durable everyday operation.
Specifications
| Model | BY-CQB01 |
|---|---|
| Specifications |
|
| Dimensions | 145 × 145 × 75 mm |
| Weight | 677 g |
Technical notes
Pressure accuracy of ±1 psi applies to the meter's set value. Air volume and inflation times are supplier measurements taken with a fully charged battery; a flat tyre, a cold day or a partly charged pack will all take longer.
What's included
Information coming soon.
How to use
- Dock a battery. Slide a BAYU battery module onto the base until the contacts seat, or run it from the 5 m 12 V vehicle power cable instead.
- Wake the meter. Press the power button once. The screen lights and shows the current pressure.
- Pick a preset. Short-press the mode button to cycle Car (2.5 bar) → Ball (8 psi) → Bicycle (45 psi) → Motorcycle (2.4 bar). Press and hold it to change units between psi, bar, kPa and kg/cm².
- Set your pressure. Short-press + or − to step the target, or hold either to run through the range. The value blinks three times when it's set. The meter sets between 3 and 120 psi, ±1 psi.
- Connect and run. Screw the hose onto the valve, then press power to start. It stops on its own at the set pressure — you don't have to watch it.
- Need light? Short-press the LED button once the unit is powered on.
- Things it does by itself. Presets return to default each time it's switched off, the screen sleeps after 30 minutes idle, and the pump stops after 3 minutes running with no load.
- If the screen says 'hot'. That's the 120 °C cut-out, not a fault. Let it cool and restart it.
Watch how to use it
Video coming soon.
User manual
Download or view the official manual for this product.
View user manual · BY-CQB01 (opens in a new tab) Manufacturer's English manual for this exact model. Model numbers are the manufacturer's own designations.
Safety and care
- It cuts out hot. 120 °C disconnection, and the screen shows 'hot'. Let it cool and restart it — that's the protection doing its job.
- Current protection. Disconnection at 20A-25A (self-recovery after current drops below 18A)
- Fingers and hair clear of the intake and anything moving while it runs.
- Power down before changing heads. Switch off and pull the battery first.
- Cleaning. Wipe the housing with a dry or barely damp cloth. No solvents.
- Warranty. Two years, replacement. If it fails inside that window it's replaced, not repaired.
Compatible BAYU batteries
Compatible with all BAYU batteries. This cordless BAYU attachment runs from any BAYU battery, sold separately.
- Battery sold separately.
- Choose by capacity, and whether you need the built-in jump starter.
Every BAYU battery powers this attachment. Compare capacity and jump-starter features before choosing.
-
19,200mAh Power Bank
Model BY-NLB192B
- Capacity
- 19,200mAh
- Jump starter
- Not included
-
15,000mAh Jump Starter Power Bank
Model NLB-C
- Capacity
- 15,000mAh
- Jump starter
- Built in
-
15,000mAh Power Bank
Model 152B
- Capacity
- 15,000mAh
- Jump starter
- Not included
Questions
Does this product include a battery?
No. The Portable Tyre Inflator is supplied without a battery. A compatible BAYU battery is required to operate it and is sold separately.
Which BAYU batteries work with this attachment?
All of them. This is a BAYU battery-platform attachment, and every BAYU battery powers it. The battery is sold separately — choose by capacity, and whether you need the built-in jump starter.
Can I buy it if I already own a BAYU battery?
Yes. Every BAYU battery powers this attachment — buy the attachment on its own.
Where is the user manual?
The manufacturer's English manual for this exact model is available here: User manual (PDF) (opens in a new tab)
