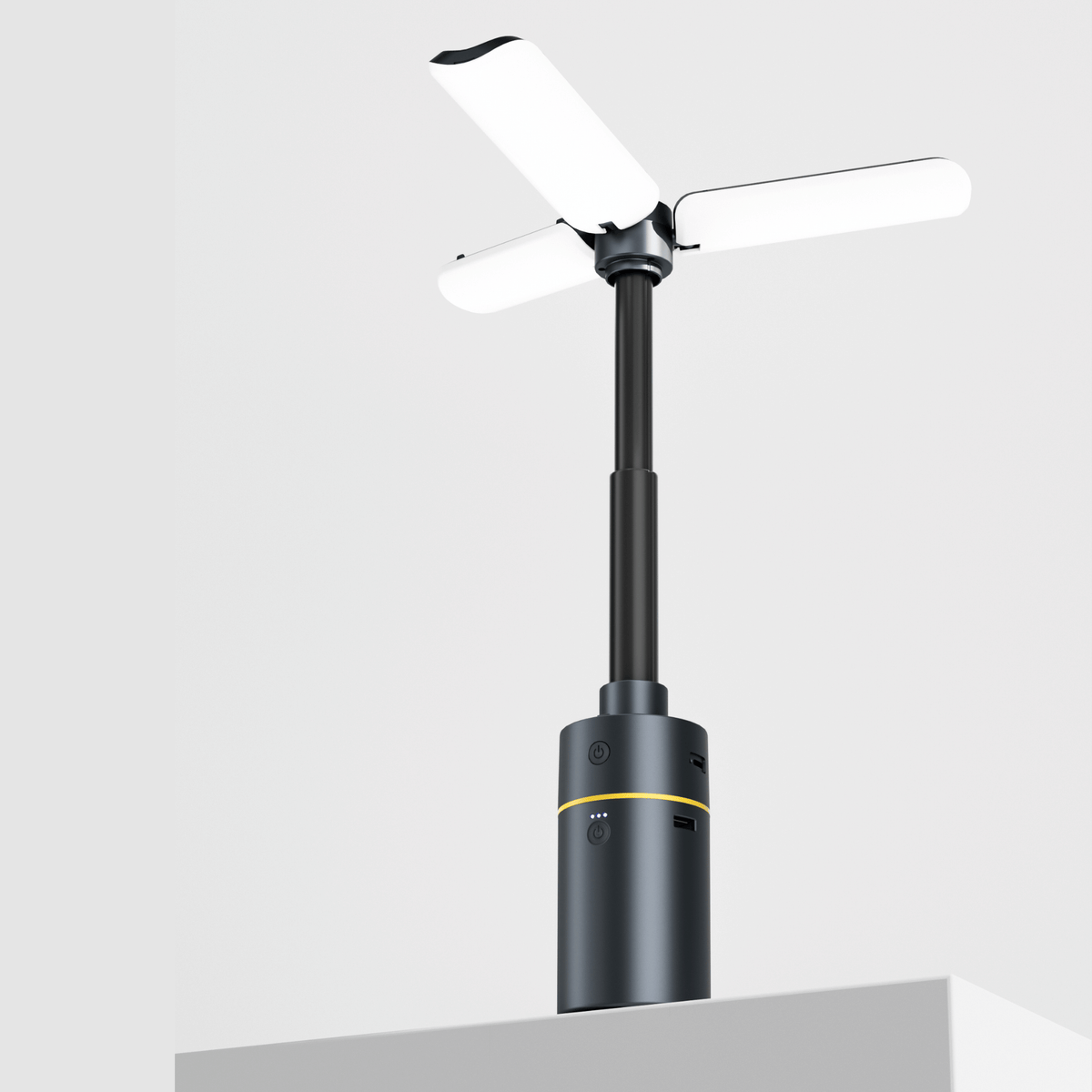

BAYU Telescopic LED Camping Light
Model BY-SYD01
A three-leaf lamp that folds compact and opens out on a telescopic pole for wider light.
Compatibility
One battery platform
Product information
About this product
This three-leaf lamp switches between a compact folded state and an unfolded state that gives multi-angle light.
It has five lighting modes (white, warm, warm white, fast flashing and SOS) for desktop work, camping and more.
It runs from a BAYU battery (power bank) on its base contacts, can also be powered through its DC or Type-C interface, and has a 1/4-inch thread for tripods and waist brackets.
Features
- Five lighting modes with stepless dimming
- Telescopic pole from 181 mm to 610 mm
- Rotating light panels and a fold-up hanging hook
- 1/4-inch thread for an optional tripod
Specifications
Key specifications
- Product
- Three-leaf lamp
- Model
- BY-SYD01
- Lamp bead
- LED
- Lighting mode
- White / Warm / Warm white / Flashing / SOS
- Lumen
- 1600lm
- Power
- 25W
- Type-C input voltage
- 12V
- Contact input voltage
- 12V
- DC input voltage
- 12V
- Dimming
- Stepless dimming
- Extension interface
- 1/4 inch interface
- Product material
- ABS/PC/Aluminum alloy
- Powered by
- Power bank / Type-C input / DC input
- Product weight
- 300g (excluding power bank)
- Expand height
- 610mm (excluding power bank)
- Product dimension
- 181mm x 65.5mm x 65.5mm
- Reference runtime (per manual)
- NLB-152B: 3-12h
How to use
- Remove the decorative ring from the BAYU battery (power bank), align its unlock mark with the triangle on the lamp, connect, then turn the battery right until the lock mark lines up.
- Press the battery switch, then press the lamp switch to turn on white light. Press again within 2.5 seconds to cycle through the modes; after more than 2.5 seconds, a press turns the lamp off.
- Press and hold the clover-shaped switch to dim; release at the level you want. Press and hold again to brighten.
- Extend the telescopic pole up to 610 mm (excluding the battery). When retracting after full extension, push the sections in from the bottom up, largest to smallest.
- Rotate the light panels up to 270 degrees horizontally and 180 degrees vertically. Stop at the rotation limit and turn back the other way; do not force it.
- Flip up the top hook (90 degrees) to hang the lamp from a backpack, tent pole, branch or wall bracket.
- Wired use: when the battery is low, power the lamp through the DC or Type-C input. The power source must support 12V output; a 5V or 9V-only charger may not work.
- Optional tripod (sold separately): fit it to the 1/4-inch thread for a floor-standing lamp.
Safety and care
- Do not stare at the light source for long periods. Children should be supervised by an adult at all times.
- Adjust the panel angles gently to avoid loosening the pivot or damaging the casing.
- When using the hook, make sure the mounting point can bear the weight; avoid thin branches or thin plastic.
- Avoid use above 40°C, in humid places (such as rain or bathrooms) or in dusty environments.
- If the charging port is dirty or wet, clean it with a dry cotton swab before connecting a cable.
- When charging, keep the lamp in a well-ventilated area away from curtains, paper and other flammable materials.
- Fold the lamp and switch it off before carrying. Keep it away from sharp objects that could scratch the body or light.
Questions
What lighting modes are there?
White, warm, warm white, fast flashing and SOS, plus stepless dimming by pressing and holding the switch.
How tall does it extend?
From 181 mm folded up to 610 mm (excluding the battery) on the telescopic pole.
Can I power it without a battery?
Yes, through the DC or Type-C input, from a power source that supports 12V output. A 5V or 9V-only charger may not work.
Is a tripod included?
No. The tripod needs to be purchased separately and is not included in the configuration list.
Can I hang it?
Yes. Flip up the hook on top to hang it from a backpack, tent pole, branch or wall bracket that can bear the weight.
BAYU Telescopic LED Camping LightBY-SYD01
Get the highlights
BAYU Telescopic Camping Light
-

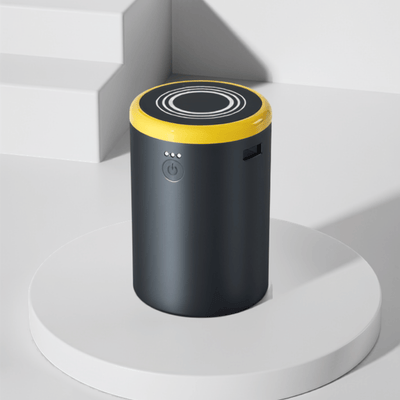

Connects to BAYU power
Twists onto a compatible BAYU battery, sold separately.
-
Desk light
Open the three light panels to light a desk or table.
-
Telescopic pole
Extend the pole to raise the light above a camp table.
-

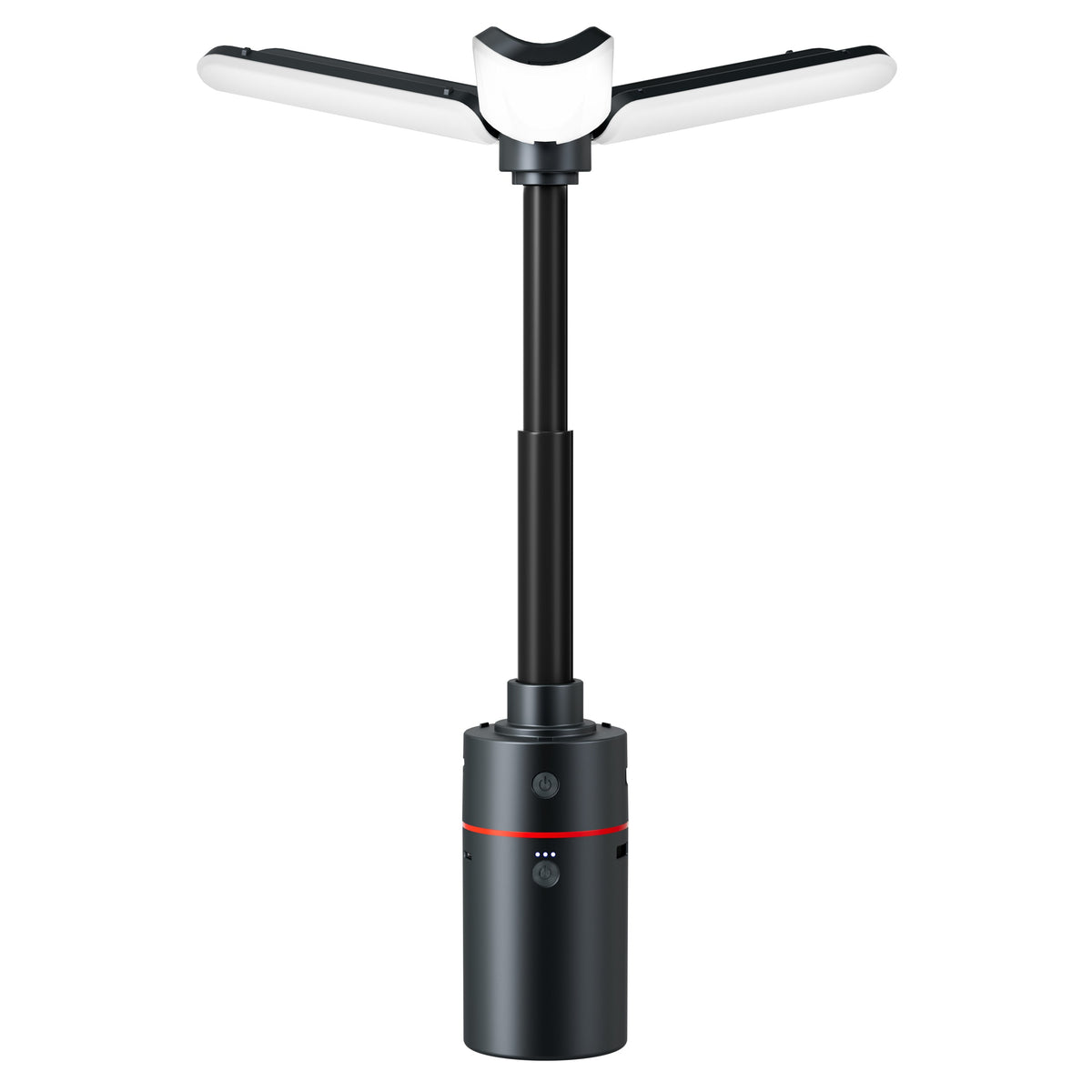

Adjustable panels
Rotate the panels to aim the light. Stop at the limit and do not force it.
-
Fold-up hook
Flip up the top hook to hang it from a branch or tent pole.
Warranty
If it fails within the warranty period under the policy terms, it gets replaced — not repaired.
